Rectangular Pulse signal / Loop Countdown Timer adjustment

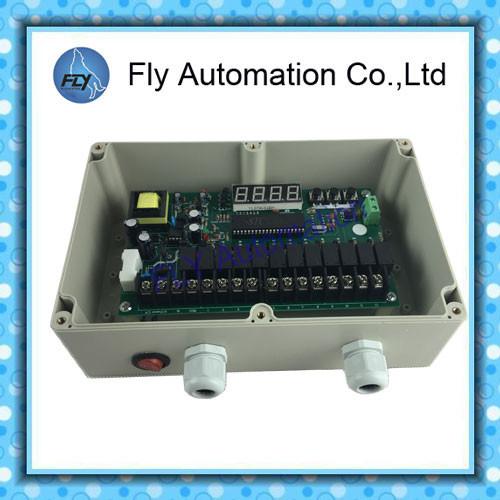

PLC-8 Online deashing controller is the main equipment of the bag type dust collector cleaning system . Made by high technology , it is of high quality and has Long service life . The latest anti - jamming design ensures the system stability, more reliable . These are stringently tested and offered at competitive prices .
Made of transparent plastic shell , it can be installed in the control room or directly in the dust collector.
Quick Detail :
1) Output intervals : 1-250ms
5) Weight : 1.5kgs
2) Rated output current : 1A
3) Temperature range : -25℃ - +60℃
4) Output Pulse Width adjustment range : 50ms-2500ms
6) Size : 222*145*75mm
7) No strong corrosive gases or Conductive dust
8) Working medium : Air
9) Weight : 1.5kgs
10) No violent vibration or shock
Drawings :
Specification :
1. Rated input voltage : AC220V
2. Rated output voltage : DC48V
3. Color : transparent
4. Body Material : engineering plastic
5. Output Pulse Width adjustment range : 50ms-2500ms
6. Transposition clearly
7. Long service life
8. Easy to install
9. Small Operating force
10. Simple operation
Quality Standards :
It is of high quality and has long service life .No second hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns. The item has passed the strict aging test before ex-factory .
Warranty :
The company supplies the free maintenance if any quality problem within 6 months since the date of the ex-factory , except the following conditions : strong corrosive gases , conductive dust , violent vibration or shock .
Competitive Advantage :
| Our product features | Our Services Guarantee |
| 1) Good quality | 1) Free Samples (Customer pay for the delivery cost) |
| 2) Produce according to Customers’ instruction | 2) Registration support |
| 3) Competitive price | 3) Prompt respond (Reply with 24 hours) |
| 4) Professional Packaging | 4) Photos/videos are available during production |
| 5) None delay shipment | 5) Loading inspection , and send loading photos before shipment |
